19” 3U Rack Card Solution for CAT5 VGA/Component Video & Stereo audio Distribution System

FORESIGHT new 19” 3U Rack Card Solution for UTP CAT5 VGA Distribution System is professional and neat application for shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

RV01, RY01, RT01 are 19” rack cards installed at local side for sending VGA, Component Video & Stereo audio over cost effective UTP CAT5 solution to remote side.

These rack cards could install in RB01 19” standard rack mounting cabinet, up to 15 pieces. It can install together with other rack cards, such as CAT5 digital & stereo audio output card for multi signal input/output over CAT5.

These senders with rack card type is a smart, fast and cost-effective, eliminates costly and bulky VGA , Component video, Audio cable and the most efficient way to move multimedia content from player to display. At monitor remote side, to use UTP CAT5 VGA, Component Video & Stereo audio CAT5 receiver for each monitor.

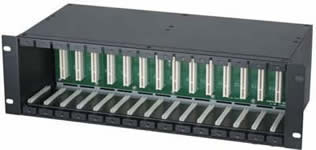

RB01 3U 19" Rack Mounting Cabinet

�� Standard 19” 3U rack mounting cabinet.
� Allow to insert 15 rack cards (RV01, RV02, RY01, RT01, RT02).
� Built in 1000W switching power supply (+5V 10Amp, -5V 10Amp).
� Built in fan for low operating temperature.
� Ideal for multi input/output VGA/component video, stereo/digital audio distribution. Perfect for
used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

VGA, Component Video & Audio Input Rack Card

	RV01 1 Channel VGA & Stereo/Digital Audio Input Rack Card � 19” rack card with one VGA & stereo audio input and one loop output. � Loop out could be for local monitoring or daisy chain application. � Automatic identify digital or analog audio input. � Audio output could be digital or analog conversion. (Digital audio only support PCM format). � Support DDC and built in EDID, backup monitor EDID function. � Maximum supports up to 4 channel VGA & stereo/digital audio input cards ( RV01x 4 pieces) in one RB01 rack mounting cabinet. � Each input could allow multi outputs via RT01 (5 Channel CAT5 output rack card). � Used to work with RT01 CAT5 5 channel transmitter rack card for multi input/output distribution over CAT5 cable.

	RV02 2 Channel VGA & Stereo/Digital Audio Input Rack Card � Identical to RV01, but with 2 channel VGA & stereo/digital audio Input. � Maximum supports up to 4 channel VGA & stereo/digital audio input cards (RV02 x 2 pcs) in one RB01 rack mounting cabinet.

	RY01 1 Channel Component Video & Stereo/Digital Audio Input Rack Card �� 19” rack card with one component video & stereo audio input. �� Automatic identify digital or analog audio input. �� Maximum supports up to 4 channel component video & stereo/digital audio input cards (RY01 x 4 pcs) in one RB01 rack mounting cabinet �� Each input could allow multi outputs via RT01 (5 Channel CAT5 output rack card). �� Used to work with RT01 CAT5 5 channel transmitter rack card for multi input/output distribution over CAT5 cable.

5 Channel CAT5 Ouput Rack Card

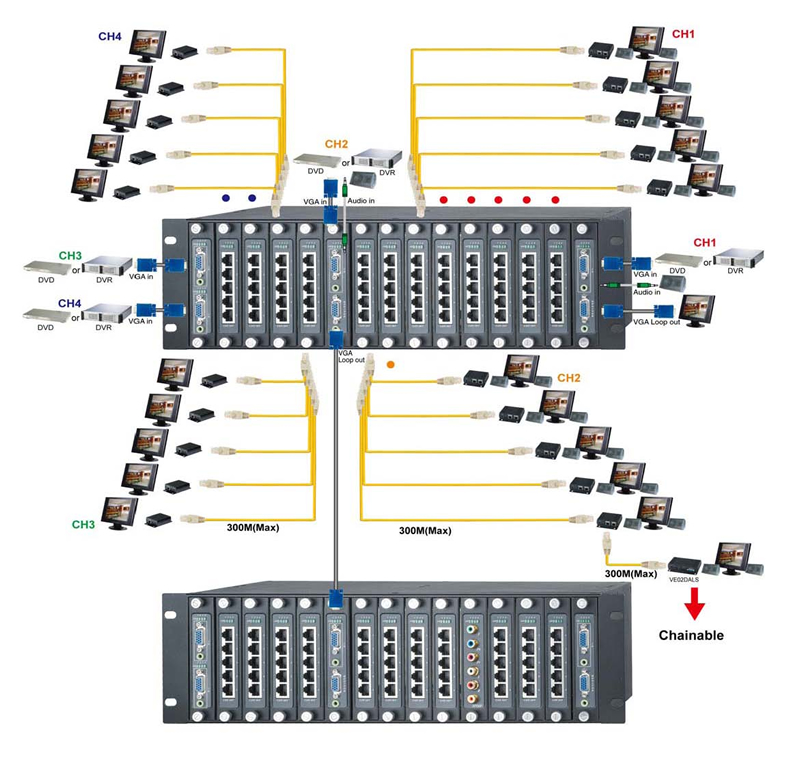

	RT01 5 Channel CAT5 VGA/Component & Audio Output Rack Card �� 19” rack card with 5 Channel CAT5 output as a CAT5 transmitter, to extend VGA/Component Video & audio over one CAT5 cable. �� Remote monitoring side using CAT5 receiver box, such a VE02ALR, VE02DALS, YE02DALR, YE02DALS. �� VGA resolution support up to 1600 x 1200@85Hz. �� Component video support Full HD 1080p. �� Long range transmission up to 300 meters (Max.) �� 4 input signal option with LED indication. �� Automatic scan each channel. �� Allow up to 14 pieces RT01 CAT5 transmitter card at RB01, to send multi distribution up to 70 remote monitors Option Model–CAT5 Receiver at Remote Site: VE02ALR: VGA & Stereo Audio CAT5 Receiver– Chainable Function VE02DALS: VGA & Stereo Audio, Digital Audio CAT5 Receiver– Built in Skew Adjustment YE02DALR: Component Video & Stereo Audio CAT5 Receiver– Chainable Function YE02DALS: Component Video & Stereo Audio, Digital Audio CAT5 Receiver–Built in Skew Adjustment.

	RT02 5 Channel CAT5 Audio Output Rack Card • Identical to RT01, but to extend stereo/digital audio signal only. • Remote monitoring side using AE03, AE04 stereo/digital audio CAT5 receiver box. • Long range transmission. Option Model–CAT5 Receiver at Remote Site: AE03: Stereo/Digital Audio CAT5 Receiver (Built in Volume Control) AE04: Stereo/Digital Audio CAT5 Receiver (Built in Audio Power Amplifier)
